Creating an MPR View

You can create an MPR view manually, as described in this section. For information about automatically creating an MPR view, view the topics listed under Display Protocols.

To create an MPR View:	Do this:

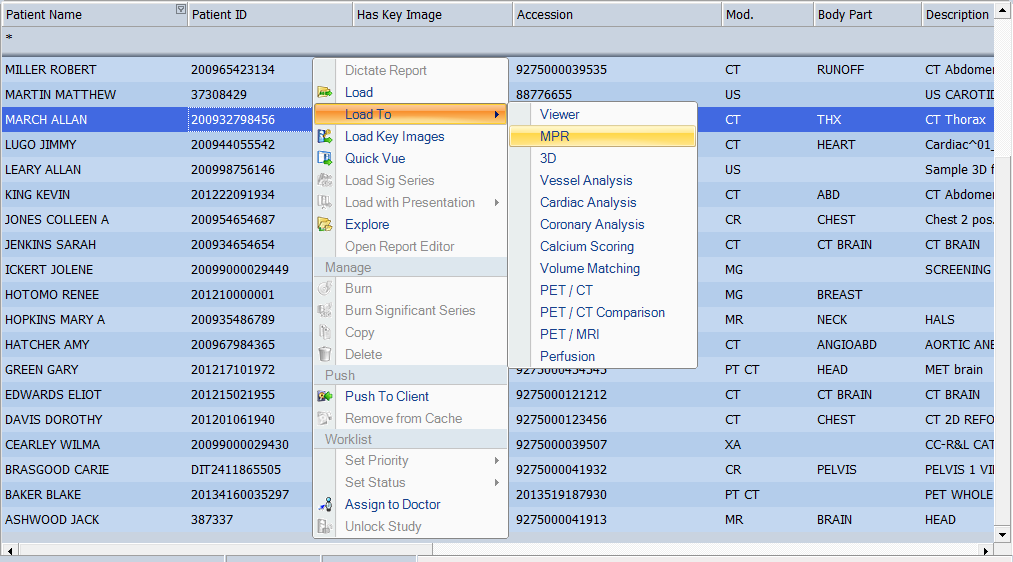

From the Archive Explorer	Right-click a study group, select Load To, then select MPR.

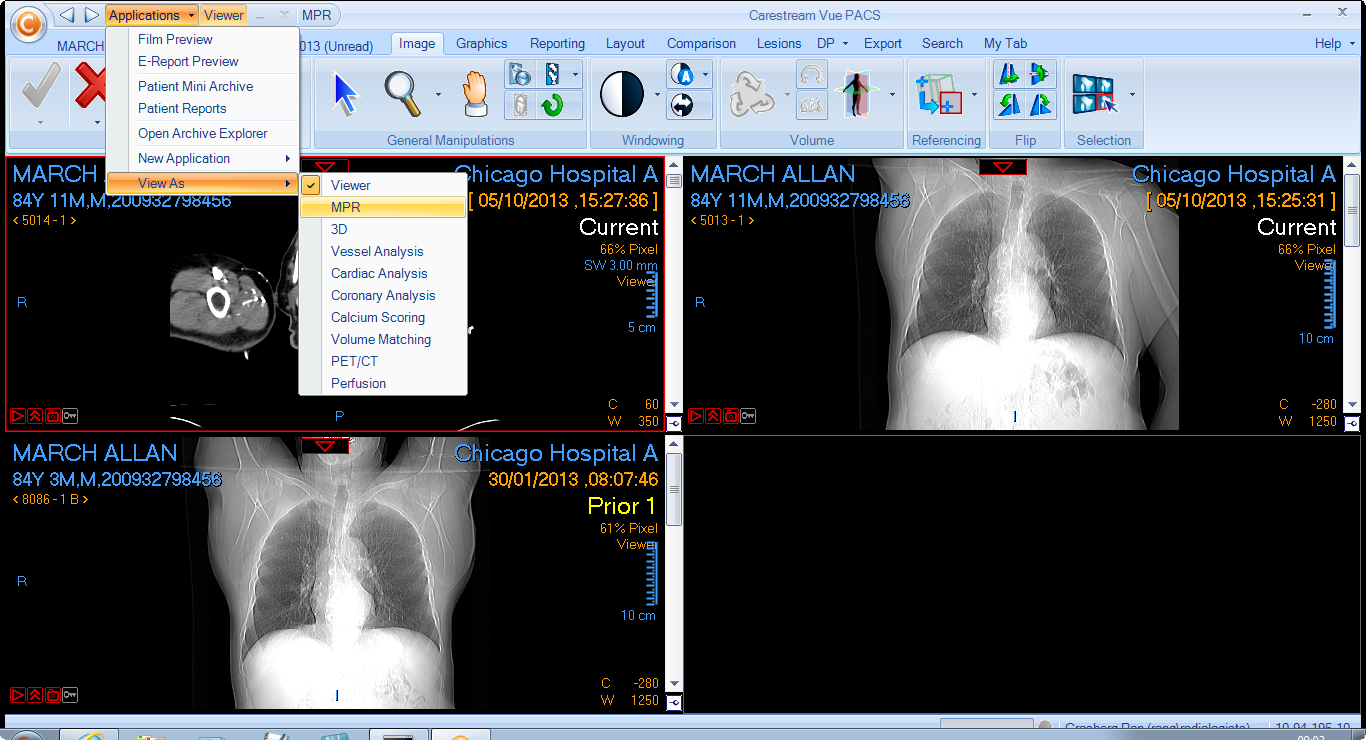

In the PowerViewer	Right-click an existing group, select View As, then select MPR. Or From the Applications menu, select View As and then select MPR from the drop-down menu.
From the Patient Mini-Archive	1. Right-click a study group, then drag it to the display area. 2. Select MPR.
To an open application	If the currently open application is MPR, click the study group in the Patient Mini-Archive, then drag it to the display area. The selected group of images appears in the application. The reference images and result images appear in the location and layout that was last used.
